Highbond anchor FHB II-A S Inject

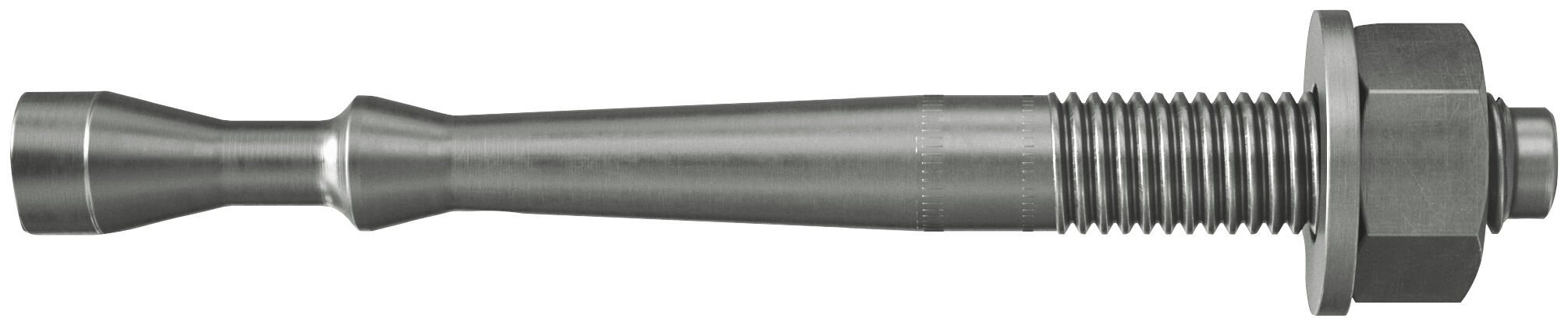

  • Product Picture: "fischer Highbond anchor FHB II-A S Inject M10 x 60/10 R"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 539911

      fischer Highbond anchor FHB II-A S Inject M10 x 60/10 R

      Product variants
      Download of image data
      Top Features
      • For high loads in cracked concrete.
      • Economical in serial installation.
      • Low drill hole depth means less drilling effort.
      • No drill hole cleaning when using a hollow drill with extraction.
      • Suitable for pre-positioned and push-through installation.

      The advantages / Product description

      The economical solution in cracked concrete.
      Advantages
      • The Highbond system FHB II Inject achieves high load values in cracked concrete.
      • The combination of injection mortar FIS HB and anchor rod FHB II-AS Inject R (short version) is ideally suited for serial installation outdoors.
      • The low drill hole depth minimizes the drilling effort, which saves time and ensures economical installation.
      • When using hollow drills with extraction, no drill hole cleaning is required.
      The Highbond anchor rod FHB II-AS R Inject is a system component of the fischer Highbond system FHB II Inject. The bonded anchor is ideal for standard fastenings in cracked concrete. With the FHB II AS Inject A4 for example guard rails and steel constructions are fixed outdoors. The conical anchor is set with the Highbond special mortar FIS HB.

      Application and approval

      Applications

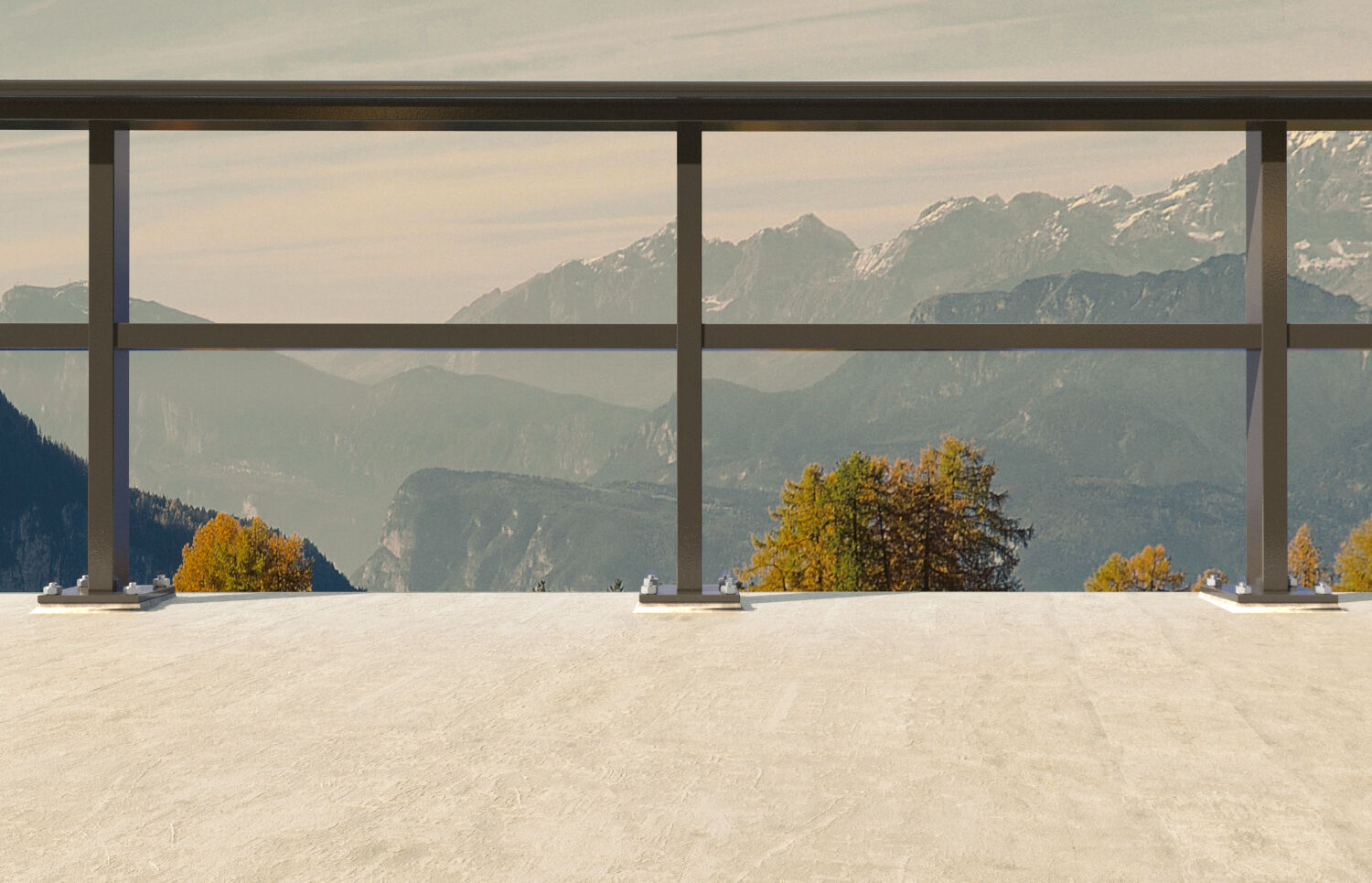

      • Guard rails
      • Façades
      • Staircases
      • Steel constructions
      • Masts
      Building materials
      Approved for:
      • Concrete C20/25 to C50/60, cracked and non-cracked
      Also suitable for:
      • Concrete C12/15
      You can find detailed information on building materials in the registration document.
      Approvals
      • ETA-16/0637
      • ETA-21/0948
      • DoP No. 0281
      • DoP No. 0327
      • GS 3.2/16-352-1
      • (2103/12/12) - CM

      Assembly instruction

      Functionality
      • The FHB II-AS Inject is a bonded anchor with torque-controlled expansion for pre-positioned and push-trough installation.
      • The anchor rod is set with the Highbond special motor FIS HB and is fully bonded in the drill hole.
      • When tightening the hexagon nut, the anchor rod cones are pulled in the motar shell, which expands against the drill hole wall.
      Mounting Strip 1 Picture
      1 / 9
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture
      • 5
        Mounting Strip 1 Picture
      • 6
        Mounting Strip 1 Picture
      • 7
        Mounting Strip 1 Picture
      • 8
        Mounting Strip 1 Picture
      • 9
        Mounting Strip 1 Picture
      Mounting Strip 2 Picture
      1 / 9
      • 1
        Mounting Strip 2 Picture
      • 2
        Mounting Strip 2 Picture
      • 3
        Mounting Strip 2 Picture
      • 4
        Mounting Strip 2 Picture
      • 5
        Mounting Strip 2 Picture
      • 6
        Mounting Strip 2 Picture
      • 7
        Mounting Strip 2 Picture
      • 8
        Mounting Strip 2 Picture
      • 9
        Mounting Strip 2 Picture

      Technical data

      ETA-approval
      Drill diameter (
      d0
      )      		10 mm
      Drill hole depth (
      h0
      )      		66 mm
      Anchorage depth (
      hef
      )      		60 mm
      Max. fixture thickness (
      t fix
      )      		10 mm
      Thread (
      M
      )      		M10
      Width across nut 17 mm
      Amount 10 pcs.
      GTIN (EAN-Code) 4048962272925

      Documents for download

      • ETAs and DoPs
      • Approvals and Certificates
      • Technical documents
      ETA Certification Document
      pdf, ETA-16/0637
      European Technical Assessment for fischer Highbond-Anchor FHB II Inject - Torque controlled bonded anchor for use in concrete
      Created on 14/12/2017
      DOP - Declaration of Performance
      pdf, DoP No. 0281
      Declaration of Performance for fischer Highbond-Anchor FHB II Inject (Bonded expansion fastener for use in concrete)
      Created on 19/01/2021
      ETA Certification Document
      pdf, ETA-21/0948
      European Technical Assessment for fischer Highbond-Anchor FHB II for diamond drilling / extended working life
      Created on 09/09/2022
      DOP - Declaration of Performance
      pdf, DoP No. 0327
      Declaration of Performance for fischer Highbond-Anchor FHB II for diamond drilling / extended working life (Bonded expansion fastener for use in concrete)
      Created on 16/09/2022
